Yuju Auto-Straightening Machine Manufacturing Co., Ltd.

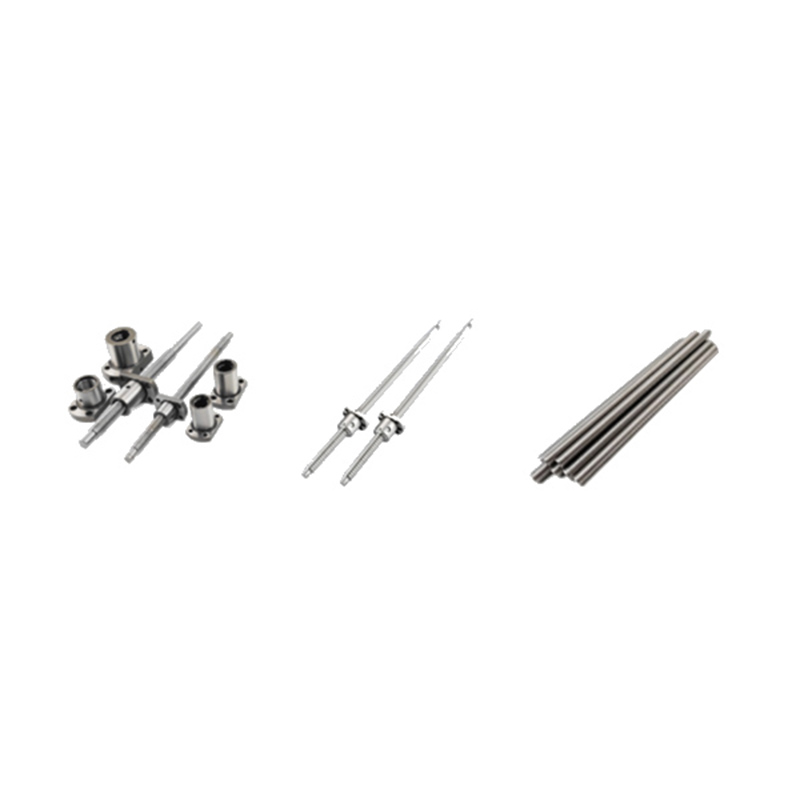

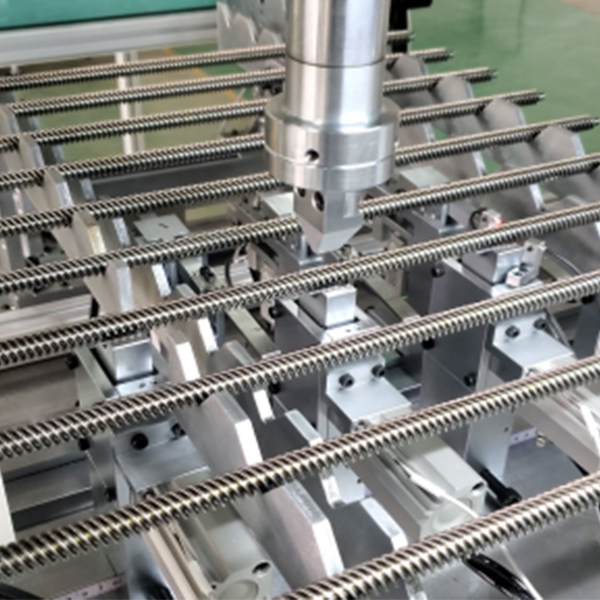

automatic screw rod straightening machine
It is used to automatically correct various bends produced during processing and heat treatment.
1.Real time understanding of the bending state of the product can be used to select the optimal loading parameters and comprehensively improve the straightening efficiency;
2.The equipment adopts full PLC control, which eliminates the criticized industrial computer control route in the industry and ensures the stability of the equipment control system；
3.Adopt high-precision sensors and algorithms to achieve a measurement accuracy of up to 0.001mm, thereby ensuring the accuracy of the measurement;
4.With historical traceability function, equipped with 16GB memory card to store processing information, and reserved communication interface with the upper computer;
5.It has multiple functions and can be customized according to customer requirements, with a short customization cycle;
6.The system can save multiple product models and achieve one click changeover, with tooling changeover taking only 10 minutes;
7. It can be equipped with fully automatic loading and unloading, without the need for manual supervision, and comes with equipment alarm prompt function, making operation simple and convenient.
| Equipment parameters | Automatic screw rod straightening machine | Automatic screw rod straightening machine |
| Type： | ZJ-005DAM32J-A | — |
| Length range： | 80mm~500mm | 100mm ~ 600mm (length can be customized) |
| Diameter range: | 4mm~15mm | ≤25mm |
| Measuring points： | 1~3 points (can be increased or decreased) | 1~7 points (can be increased or decreased) |
| Correction of points： | 1~3(choose according to specific requirements) | 1~7(choose according to specific requirements) |
| Accuracy： | 0.001mm | |
| Capability： | 0.01mm | |
| Measure speed： | 30~120rpm | |
| Cycle Time: | 5~6s; matched structure | |
| Drive mode： | Belt wheel drive | |
| Control Method: | PLC (Keyence KV-3000)/PLC (Keyence KV-NANO) | |
| Maximum Output Force: | 5 ton (1 ton, 2 tons, 3 tons, 5 tons, 10 tons can be selected ) | |
| Loading Mode: | Manual, Manipulator, chain assembly line, Sawtooth Assembly Line, bin assembly line (optional) | |
| Machine Weight : | 1100kg | |
| Working Air Pressure: | Compressed air: 0.5 mpa, Rh: ≤60% , flow≥150L/min | |
| Power : | 3P 380V + 10% 50 ± 1Hz three-phase five-wire system | |
| Consumption: | 5kw | — |
| Volume(W* D * H): | 1900*2400*2300 | |
