Yuju Auto-Straightening Machine Manufacturing Co., Ltd.

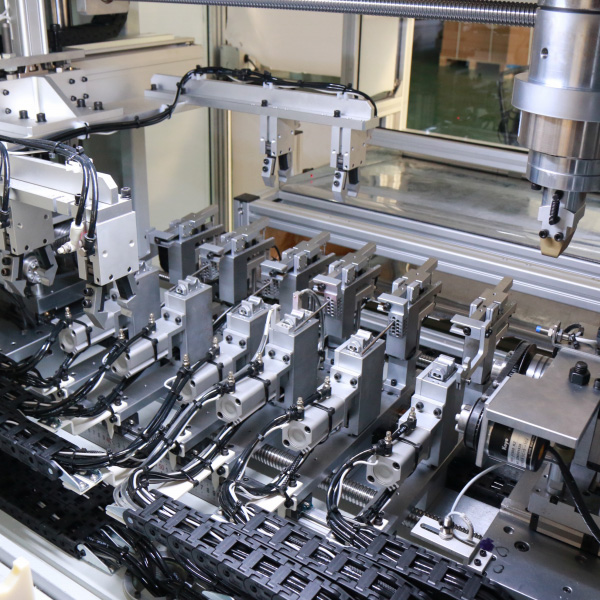

Automatic type-changing straightening machine

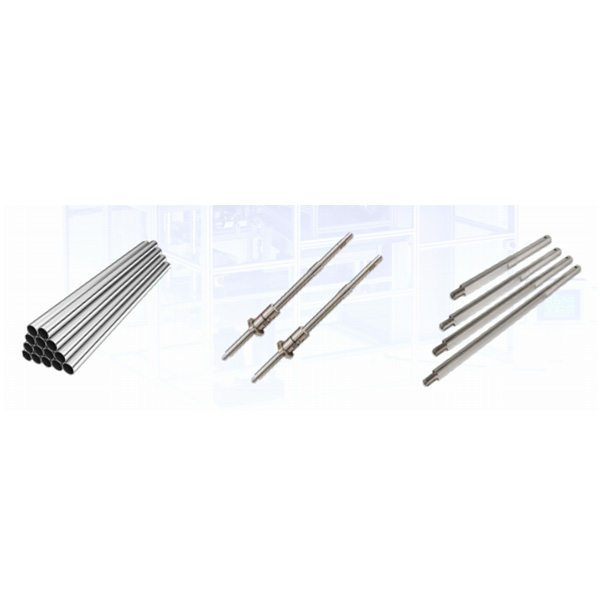

It is mainly used for the jumping and straightening of shaft products.1. The device has a fully automatic changeover function, which can switch between mechanical position and workpiece parameters with just one click;
2. Equipment testing, tooling, fixtures, etc. are all precision designed and processed;
3. The equipment uses high-precision testing sensors to achieve stable measurement and accurate positioning;
4. The equipment adopts full PLC control, eliminating the criticized industrial computer control route in the industry, and ensuring the stability of the equipment control system;
5. Reduce the requirements for equipment usage environment and be able to adapt to various environments from zero to extreme heat;
6. It has multiple functions and can be customized according to customer requirements, with a short customization cycle;
7. The system can save multiple product models and achieve one click tooling replacement, which only takes 3~10 minutes;
8. With historical traceability function, equipped with a 16 GB memory card to store processing information, and reserved communication interface with the upper computer.
| Equipment parameters | Automatic type-changing straightener | |
| Type： | ZJ-005DAM52J-A | |
| Length range： | 40mm~600mm | |
| Diameter range: | 4mm~25mm | |
| Measuring points： | 1~5 points (can be increased or decreased) | |
| Correction of points： | Multi-point (according to specific requirements) | |
| Accuracy： | 0.001mm | |
| Capability： | 0.01mm | |
| Measure speed： | 30~120rpm | |
| Cycle Time: | 5~6s; matched structure | |
| Drive mode： | Belt wheel drive | |
| Control Method: | PLC (Keyence KV-3000)/PLC (Keyence KV-NANO) | |
| Maximum Output Force: | 5 ton (1 ton, 2 tons, 3 tons, 5 tons, 10 tons can be selected a) | |
| Loading Mode: | Manual, Manipulator, chain assembly line, Sawtooth Assembly Line, bin assembly line (optional) | |
| Machine Weight : | 1100kg | |
| Working Air Pressure: | Compressed air: 0.5 mpa, Rh: ≤60% , flow≥150L/min | |
| Power : | 3P 380V + 10% 50 ± 1Hz three-phase five-wire system | |
| Consumption: | 9kw | |
| Volume(W* D * H): | 2400*2400*2400 | |
