Automatic round bar straightening machine

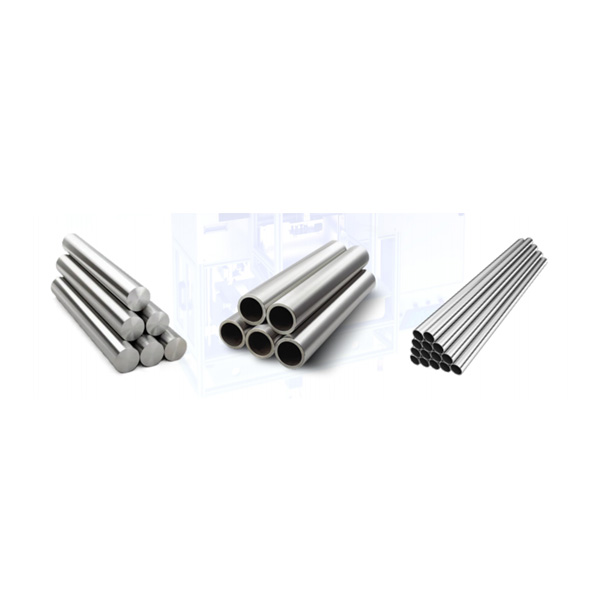

It is suitable for measuring and straightening the runout of products such as round steel, optical axes, bars, and tubes.
1. The equipment uses high-precision testing sensors to achieve stable measurement and accurate positioning;
2. Adopting the JZABM intelligent algorithm to adjust parameters according to different properties of the workpiece, intelligently controlling the amount of downward pressure;
3. The equipment adopts full PLC control, eliminating the criticized industrial computer control route in the industry, and ensuring the stability of the equipment control system;
4. Reduce the requirements for equipment usage environment and be able to adapt to various environments from zero to extreme heat;
5. It has multiple functions and can be customized according to customer requirements, with a short customization cycle;
6. The system can save multiple product models and achieve one click tooling replacement, which only takes 15~25 minutes;
7. With historical traceability function, equipped with a 16 GB memory card to store processing information, and reserved communication interface with the upper computer;
8. It can be paired with automatic loading and unloading, without the need for manual monitoring.
| Equipment parameters | Automatic round bar straightening machine | Automatic round bar straightening machine |
| Type： | ZJ-005GAM11W-A | — |
| Length range： | 80mm~500mm | 200mm~1000mm (length can be customized) |
| Diameter range: | 4mm~10mm | ≤25mm |
| Measuring points： | 1~3 point (can be increased or decreased) | 1~7 points (can be increased or decreased) |
| Correction of points： | 1~3(choose according to specific requirements) | 1~7(selected according to specific requirements) |
| Accuracy： | 0.001mm | |
| Capability： | 0.01mm | |
| Measure speed： | 30~120rpm | |
| Cycle Time: | 5~6s; matched structure | |
| Drive mode： | Belt wheel drive | |
| Control Method: | PLC (Keyence KV-3000)/PLC (Keyence KV-NANO) | |
| Maximum Output Force: | 1 ton (1 ton, 2 tons, 3 tons, 5 tons, 10 tons can be selected ) | |
| Loading Mode: | Manual, Manipulator, chain assembly line, Sawtooth Assembly Line, bin assembly line (optional) | |
| Machine Weight : | 1100kg | |
| Working Air Pressure: | Compressed air: 0.5 mpa, Rh: ≤60% , flow≥150L/min | |
| Power : | 3P 380V + 10% 50 ± 1Hz three-phase five-wire system | |
| Consumption: | 5kw | — |
| Volume(W* D * H): | 1900*2300*2000 | |
